Description

Note: We order these clip-ons in batches and therefore waiting time could be around 2 weeks. Please take this into consideration.

Tarozzi 70 mm High Rise Clip-ons sizes from 48 mm to 54 mm
Manubrio Tipo Corsa Alto

Width bar = 265 mm
Width mount = 40 mm
Usable space for mounting your grips etc = 225 mm

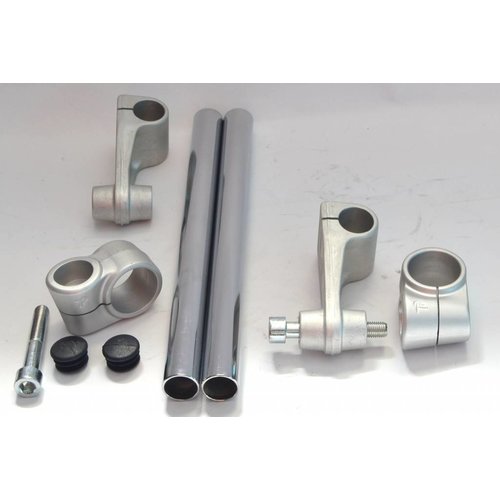

Adjustable clip-ons, High Rise, by Paolo Tarozzi of Bologna. Alloy stanchion clamp and chromed steel 22 mm handlebar. 'Bridging piece' raises the axis of the handlebar by approximately 70 mm compared to the Tarozzi race type clip-ons. Infinitely adjustable in all planes means that if you can't get comfortable with the fitted you must be built like Quasimodo's little brother.

Color/Finish: Chrome & Silver
Dimensions: 7/8" (22 mm) Bars w/ 70 mm Height
Material: Steel & Cast Aluminium

Select the type you need in the drop down and we'll get you the diameter you need!
So, for example, for 48 mm forks, you will need 56-0027.

ModelDiameter
56-002748
56-002850
56-002951
56-003051,5
56-003152
56-003253
56-003353,5
56-003454



Delivery time takes about 5 to 15 working days.

The High Rise and Low Rise versions are similar in design. Unlike normal clip-ons these raise the bars up higher to provide a more relaxed riding position. The Low Rise model raises the bars 40 mm (1.6") higher than usual while the High Rise version raises the bars a full 70 mm (2.8") higher than usual. The handlebars provided are chrome plated steel (22 mm or .866" diameter) while the mounting parts are cast and machined aluminium. Black plastic plugs are provided for the open ends of the handlebars. Usable handlebar length for mounting brakes, throttle, and other items is 222 mm (8.75"). For those who prefer a lighter aluminium handlebar for use with both the high rise and low-rise clip-ons we offer that item as an accessory part in Clip-on Parts.

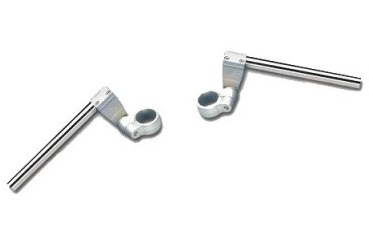

As you can see in the pictures above our High Rise and Low Rise clip-ons can be mounted in four different configurations. This makes them much easier to adapt to your motorcycle. It allows you to work around interference with fairings, master cylinders, cables and all the other items which always seem to be in the way. In addition, it also allows you to get the perfect riding position by moving the handlebars forward or backwards to suit your preference.

The mounting brackets for the fork tubes are one piece and will require the removal of your upper triple clamp for installation. Please also note that the bracket which the handlebars mount in is held in position by one large socket head cap screw. This allows you to adjust the bar angle up or down to whatever position suits your needs.
