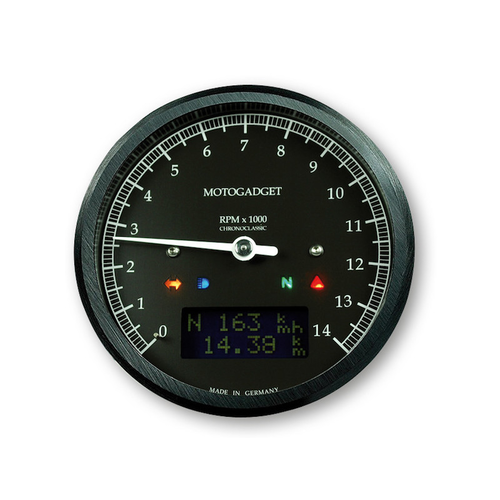

Chronoclassic Tacho Black 14.000 RPM. The Motogadget Chronoclassic is a digital multipurpose instrument in a classic round casing.

Technically identical to the Motoscope classic, it brandishes a black dial and a white indicator. The design resembles old Smiths brand instruments.

Specifications

  • Mounting diameter: 80 mm
  • Overall diameter (bezel): 85 mm
  • Depth without cable fitting: 34 mm
  • Weight: approx. 230 g
  • Mounting: 3 x M4 threaded hole
  • Power consumption (in operation): approx. 200 mA (depending on load)
  • Power consumption (in standby): 0 mA
  • Operating voltage: 9-18 V
  • Operating temperature: -20 °C to +80 °C


Versions
Another distinct characteristic is the dark LC display of the DarkEdition. It further increases the harmonic look of the gauge.
Please note: We explicitly stress that readability decreases in cases of direct sunlight. If readability is of primary concern to you, please purchase the standard green display.
A technically identical instrument is also available with an analogue speedometer (please refer to the CLASSIC series).

Parts delivered
Instrument with approx. 55 cm connector cable, complete wiring, fuse, speedometer sensor M5 x 0,5 fine-pitch thread with 150 cm connector cable, 2x magnet, mini push-button, 3x M4 screw (VA), detailed installation and operating instructions. Please note that temperature and pressure sensors have to be ordered separately (refer to "Accessories").



FeatureMeasuring range
Rev counter (analogue/indicator)0 – 8, 10, 14 kRPM
Speedometer (LCD)0 – 350 km/h or mi/h
Trip meter999 km or mi max.
Total distance (adjustable)250000 km or mi max.
Journey time display0 – 99:99:99 h/min/s
Rev counter (on LCD)0 – 20000 RPM
RPM threshold warning, adjustable (int. LED and ext. gear shift flash)0 – 20000 RPM
Onboard voltage display9 V – 18 V
NEW! Low voltage warningLED blinks if the onboard voltage drops below approx. 11V - replacement for battery charge status light
Air temperature* (optional instead of water temp.)-20 - 80 °C / -4 - 176 °F with a high-/low warning
Water temperature* (optional instead of air temp.)40 - 120 °C / 104 - 248 °F with a high-/low warning
Oil temperature*40 - 160 °C / 104 - 320 °F with high-/low warning
Oil pressure*0 - 8 bar / 0 - 116 psi with high-/low warning
Timekeeping 0 - 100 km/h or 0 - 60 mi/h0.0 – 99.9 s
Current acceleration(-20.0) – 20.0 m/s2
Average speed0 – 350 km/h or mi/h
Max. speed0 – 350 km/h or mi/h
Max. RPM0 – 20.000 RPM
Max. positive acceleration0 – 20.0 m/s2
Max. negative acceleration0 – (-20.0) m/s2
Gear indicatorN, gear 1 - 6
Green indicator LEDNeutral (N)
Yellow indicator LEDTurn signal left, right
Blue indicator LEDHigh beam
Red indicator LEDDifferent warning functions external (e. g. oil pressure switch), internal (RPM, temperature, pressure, voltage)
Output external gear shift flashing light
