Name: KOSO XR-SRN Digital Multifunction Cockpit
Brand: KOSO
SKU: 27-0041
Price: 179.69 EUR

XR-SRN Digital Multifunction Cockpit

KOSO - bekijk alles van KOSO

XR-SRN Digital Multifunction Cockpit

0/5 (0 reviews)

KOSO XR-SRN Digital Multifunction Cockpit

€179,69

✔ Disponible en 2-4 días hábiles

Ver información sobre el producto >

Pedido antes de las 19:00, enviado hoy
Apoyo de entusiastas de las motos
Periodo de reflexión de 30 días, devoluciones sencillas
Los clientes nos dan un 9,2/10

¡Estamos a su disposición!

Formule su pregunta >

Productinformatie

Artikelcode: 27-0041

EAN-code: 4260303011028

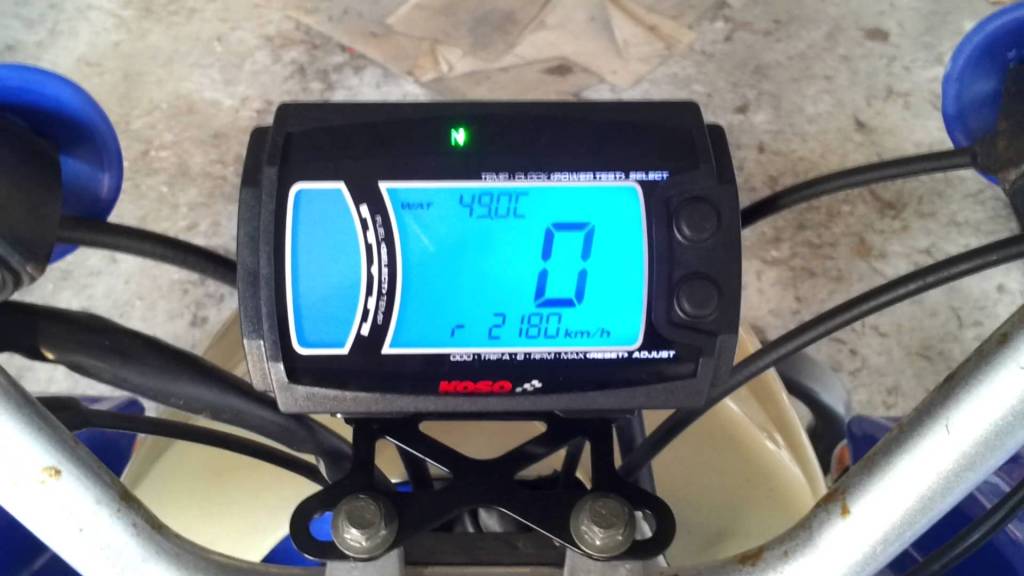

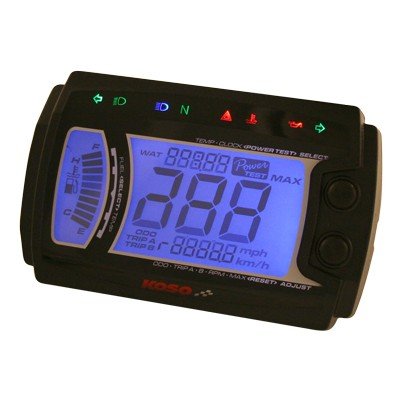

KOSO digital multifunction cockpit, XR-SR ABE, with indicator lights, blue backlight, speed, tachometer, odometer, trip odometer, oil and water temperature, fuel gauge (adjustable 100/510 ohms). For the following functions, a maximum value can be set with warning indicator: Speed, RPM, water temperature, oil temperature, tank warning. Supplied with universal sensor, mounting kit and detailed English manual.

Function, setting instruction

Speedometer	Display range: 0~360 km/h (0~223 MPH)
	Display unit: km/h & MPH for alternative
Display internal	<0.5 second
Odometer	0~99999.9 km, reset automatically after 99999.9 km (mile)
TTrip meter A.B	0~999.9 km, reset automatically after 999.9 km (mile)
Top speed record	Display range: 0~360 km/h (0~223 MPH)
Tire circumference	Setting range: 300~2,500 mm
	Setting unit: 1 mm Sensor point: 1~6
Tachometer	Display range: 0~18,000 RPM
	Display unit: 100 RPM
Display internal	<0.5 second
MAX RPM record	Display range: 0~18,000 RPM
Stroke / piston setting	Display range•__0.5, 1, 2, 3, 4, 5, 6
Temperature	Display unit: & for alternative
Digital water Êtemperature	Display unit: 0.1 (0.1)
Temperature level gauge	Display range: 20~120 (68~248), 10 level
	Display unit: 1 level=10 (50 )
Display internal	<0.5 second
Top temperature record	Display range: 0~120 (32~248 )
Fuel indicator	Display range: 10 levels
	Display unit: Each level represents 10 %
	Setting range: 100•__510
Clock	24 H
Top speed timer	The record including
	Speed•__0~360 km/h (0~223 MPH)
	Distance•__0~999 m (0~3280 feet)
	Timer•__0~9'59"99 second
Effective voltage	DC 12V
Effective temperature range	-10~+60oC
Meter standard	JIS D 0203 D3
Meter size	116.3 X 72.4 X 32.3 mm
Meter weight	Around 286 g
Telltales	Neutral (Green)•__High beam (Blue)•__Low beam (Green)•__Winker (Green)
	Hazard (Red)•__Oil pressure (Red)•__Water temperature light (Red)
