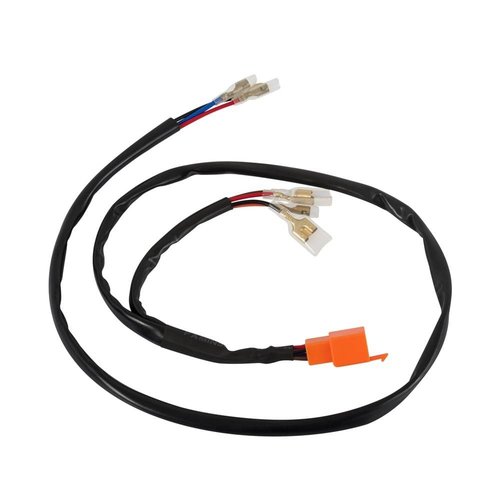

Wiring loom adapter to save you having to splice the factory cables.

Plug and Play with bullet/spade connectors as pictured. Long enough for use for custom tail lights in stock position as well as further forward on tail tidy.

Designed for positioning turn signal indicators either at the shock mount or under-seat position or on the rear mudguard.

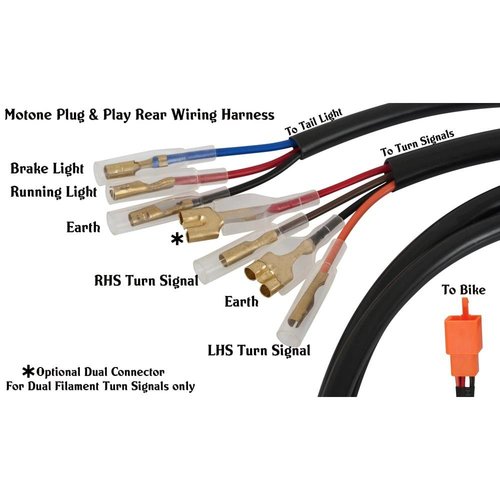

Wired as follows :

long Red is running light
long Blue is brake light
long Black earth
Orange is left indicator
Brown is right indicator

Red wire double connector - this is for turn signals that are dual filament with 3 cables (so they can act as running lights as well as turn signals) - Many turn signals do not have this functionality hence the usage of this connector is optional.

FITS ALL YEARS HINCKLEY BONNEVILLE T100/SE/SCRAMBLER/THRUXTON : 2001-2015 Present - Fits both CARB and EFI bikes.
