HIGHSIDER APOLLO LED turn signal modules

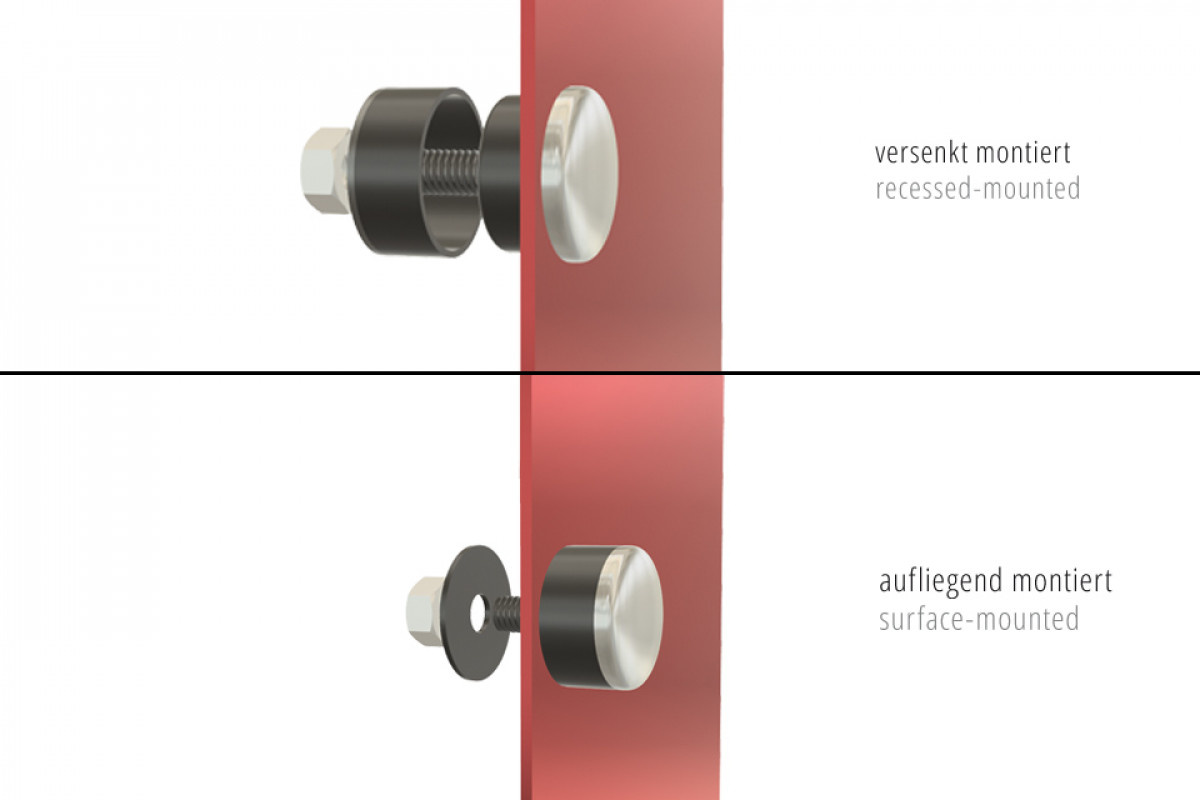

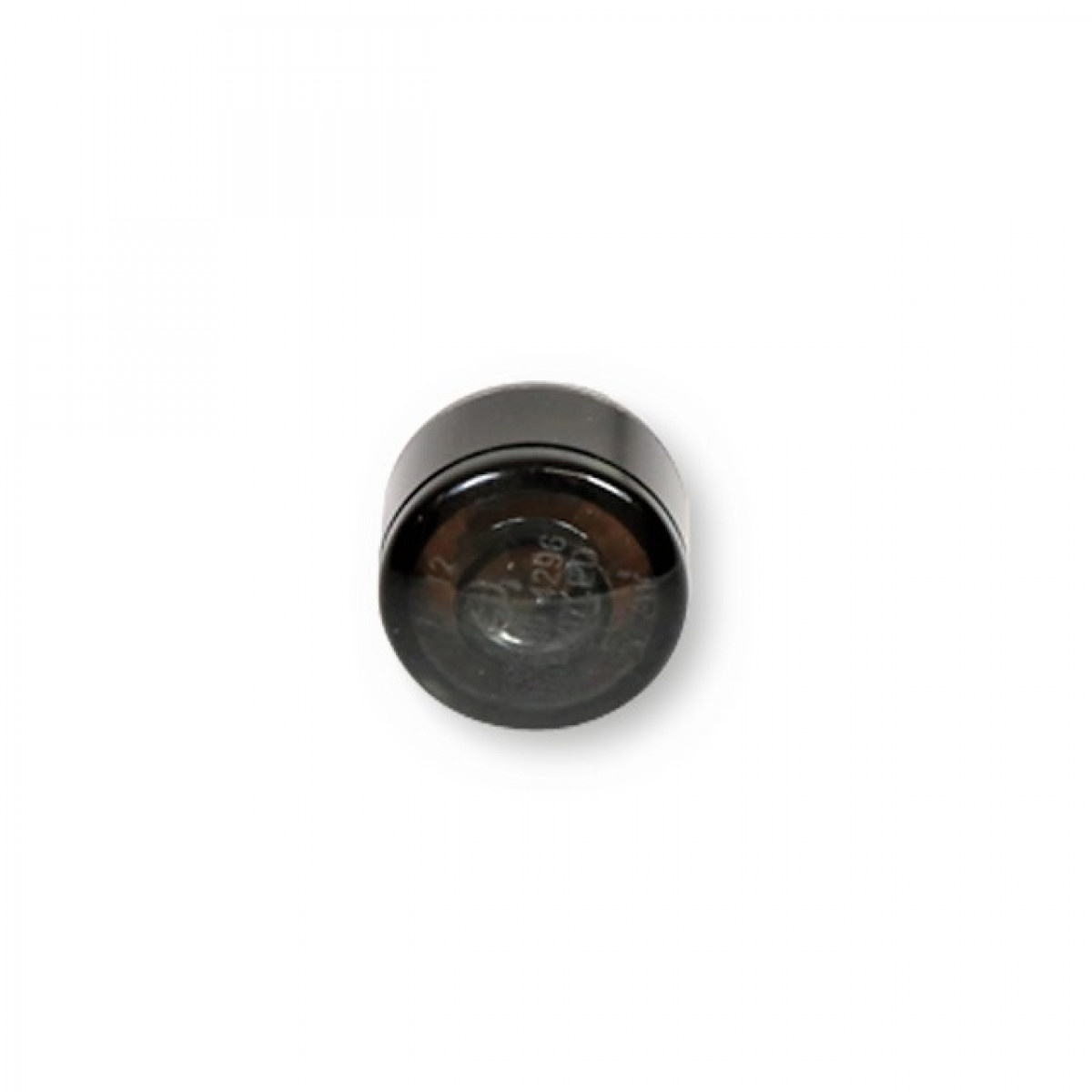

LED turn signal modules suitable for installation or surface mounting, black aluminium ring with tinted glass, E-approved.

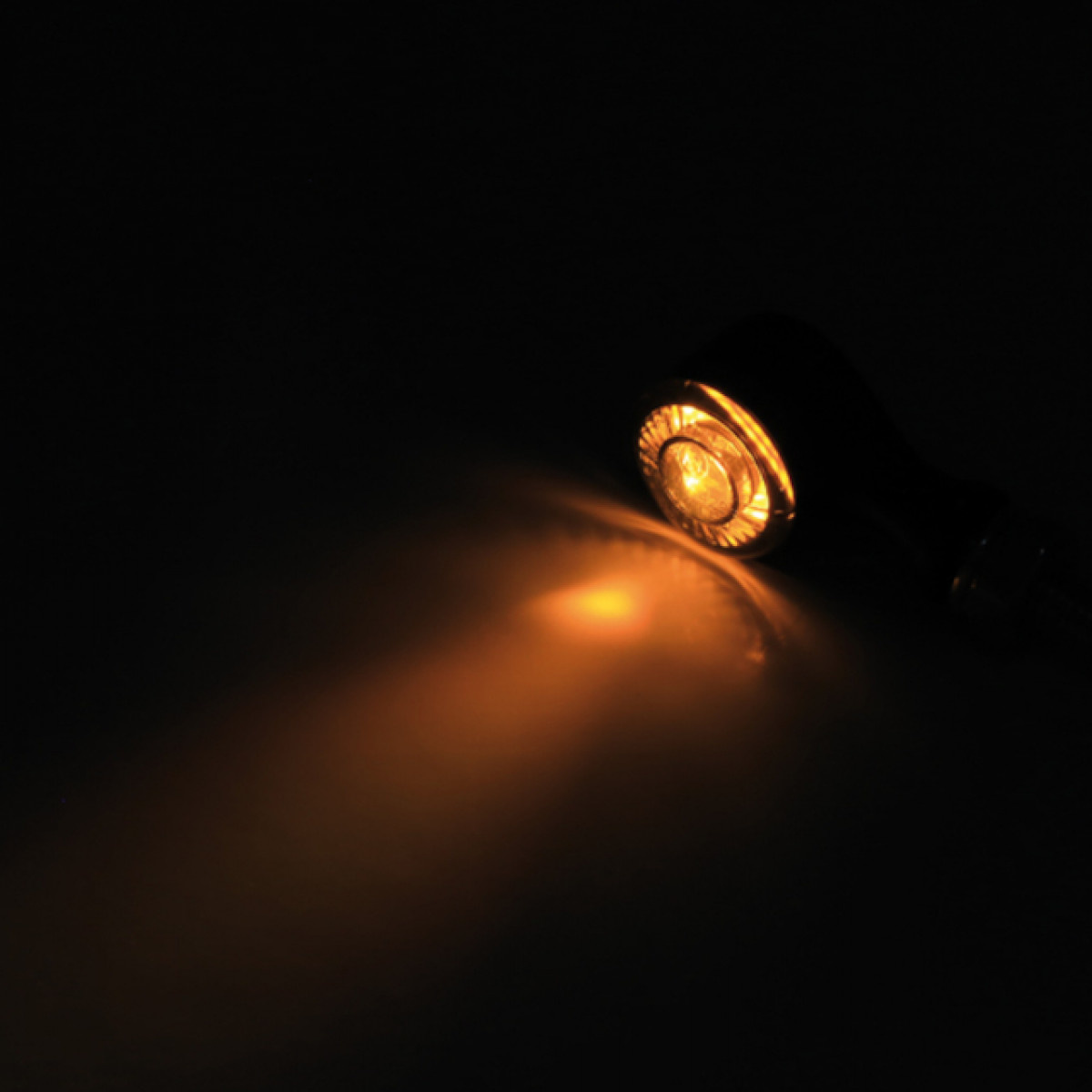

With this innovative lighting technology, 2very bright SMD LEDs are used, which allow an extremely small design. The outer ring on the other hand consists of the new COB technology (Chip On Board). The new LED chip embedding forHigh-power LEDs achieve a very high luminance with the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs. ThisModule is supplied with a black anodized aluminum ring that fits over the base body.

In the right direction - with the innovative turn signal series from HIGHSIDER Do not only show where you but who you are.

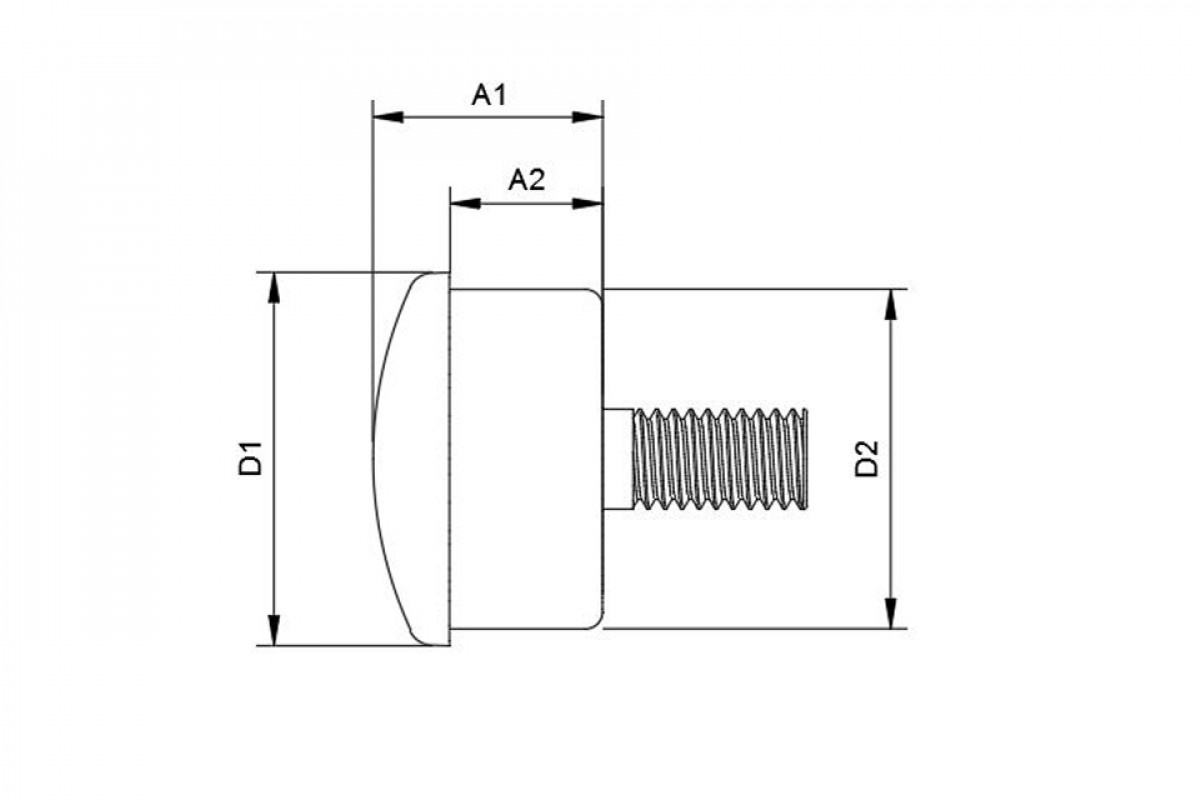

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm

Threaded bolt: M8, length: 12mm

Connections:
Black cable = ground (-)
Yellow cable = indicator (+)

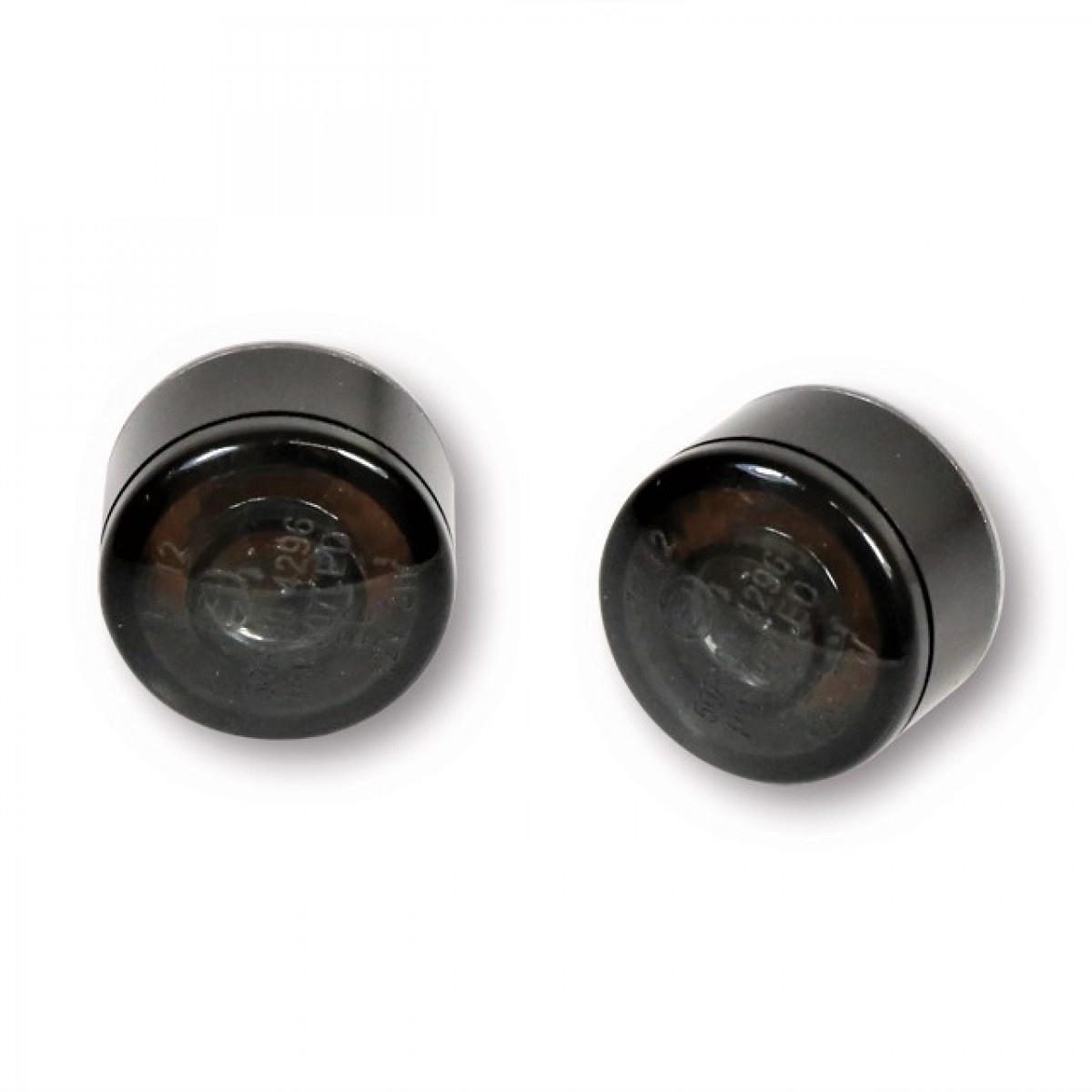

1 pair
