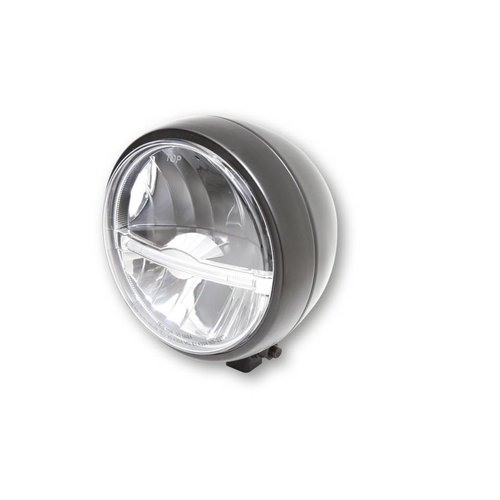

HIGHSIDER 5 3/4 inch LED headlight JACKSON

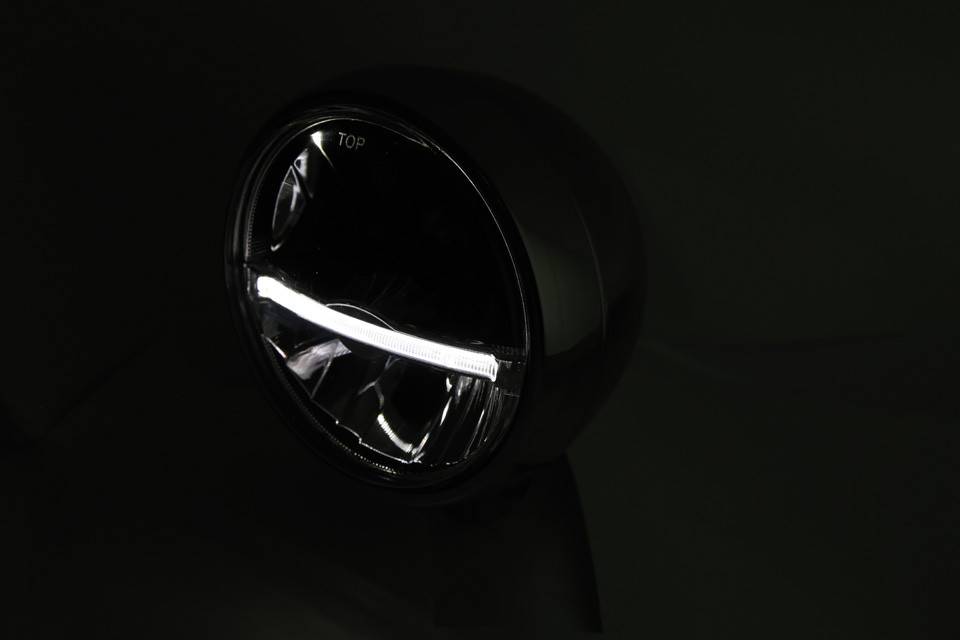

Round LED headlight with high- and low beam in a black metal housing inclusive chromed reflector and clear lens for bottom mount. LED front position light is built in the centre of the insert as light strip (light guide system). Headlight is equipped with an asymmetric reflector - approved only for right-hand driving, E-marked.
tune your bike to its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!
Housing diameter: approx. 160 mm
Diameter: approx.146 mm (5 3/4 inch)
Depth: approx. 133 mm incl. lens
From mid-fixing screw to housing rear: 60 mm
Mounting bolt: M10
Voltage: 12 volt
Black = ground
Blue = low beam
Red = high beam
White = parking light / front position light
Delivery content: 1 Pcs.
