| Snelheidsmeter | Weergave bereik: 0~360 km/h (0~223 MPH) |
| | Weergegeven eenheden : km/h & MPH for alternative |
| Display internal | <0.5 second |
| Kilometerteller | Display range: 0~99999.9 km (mile), reset automatically after 99999.9 km (mile). |
| Trip meter A/B | Display range: 0~999.9 km (mile), reset automatically after 999.9 km (mile) |
| Snelheids waarschuwing | Setting range: 30~180 km/h (20~110 MPH) |
| | Setting unit: 5 km/h (MPH) |
| Max gemeten snelheid | Display range: 0~360 km/h (0~223 MPH) |
| Band omvang | Setting range: 300~2,500 mm |
| | Setting unit: 1 mm Sensitive point: 1~60 |
| Toerenteller | Display range: 0~15,000 RPM |
| | Display unit: 100 RPM |
| Display internal | <0.5 second |
| Schakel indicator | Setting range: 5,000~15,000 RPM |
| | Setting unit: 100 RPM |
| MAX RPM record | Display range: 0~15,000 RPM |
| Stroke / piston setting | 2 Stroke: 1, 2, 3, 4 pistons |
| | 4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons |
| Thermometer | Display unit:& for alternative |
| Digital thermometer(Water & oil temperature) | Display range: 0~120 (32~248) |
| | Display unit: 0.1 |
| Level thermometer(Water temperature) | Display range: 20~120 (68~248), 10 levels |
| | Display unit: Each level represents 10 (50) |
| Display internal | <0.5 second |
| Over heat warning(Water & oil temperature) | Setting range: 60~120 (140~248) |
| | Setting unit: 1 |
| Top temperature record | Display range: 0~120 (32~248) |
| Fuel meter | Display range: 10 levels |
| | Display unit: Each level represents 10 % |
| | Setting range: 100 510 no display |
| Insufficient fuel warning | Setting range: 10~50 % |
| | Setting unit: 10 % |
| klok | 24 H |
| Doel snelheid meter | Setting range: 30~360 km/h (20~220 MPH) |
| | Setting unit: 5 km/h (MPH) |
| Doel afstand meter | Setting range: 50~1,000 M (1/32~20/32 mile) |
| | Setting unit: 50 M (1/32 mile) |
| Top snelheid meter | The record including, |
| | 1. Snelheid: 0~360 km/h (0~223 MPH) |
| | 2. Afstand: 0~999 M (0~3,280 feet) |
| | 3. RPM: 0~15,000 RPM |
| | 4. Timer: 0~9'59"99 second. |
| Effectieve voltage | DC12V |
| Effectieve temperatuur | -10~+60 |
| Meter standaard | JIS D 0203 S2 |

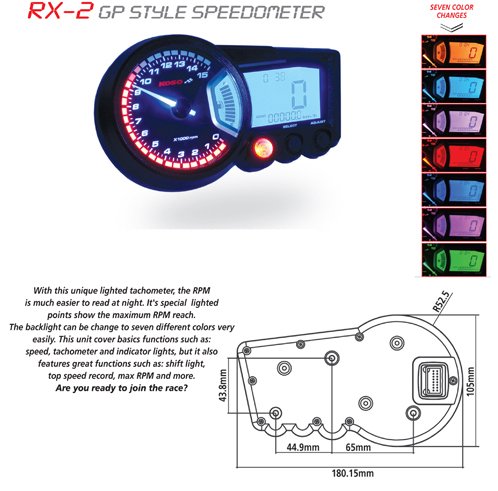

| Meter omvang | 151.8 X 81.5 X 52.5 mm |
| Meter gewicht | Around 305 g |
| Indicator light color | Neutral(Green)•__High beam(Blue)•__Repeater(Green)•__EOBD(Amber)•__Oil(Red)•__Speeding(Red)•__ |
| | RPM shift light (Yellow / Red) |
