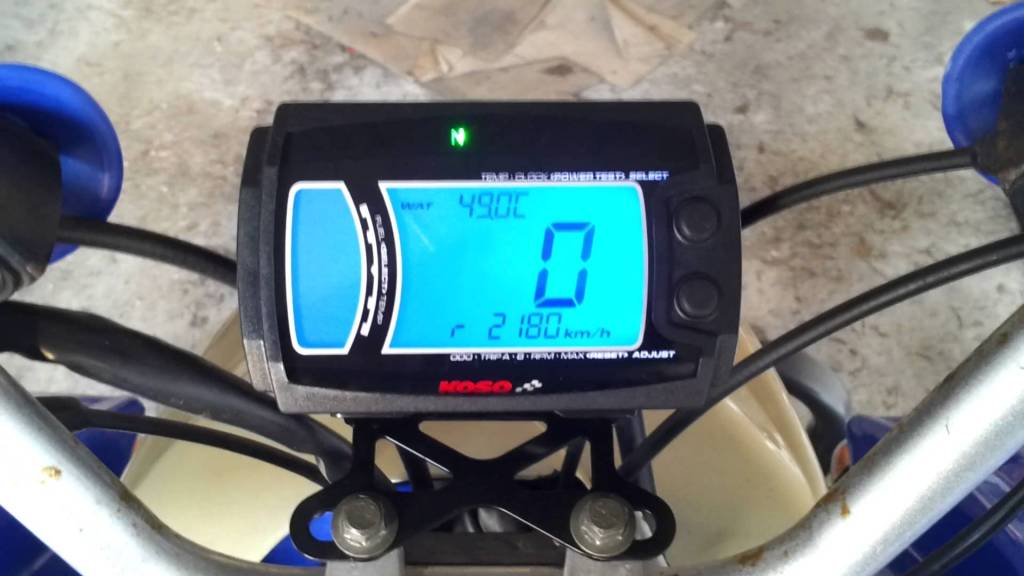

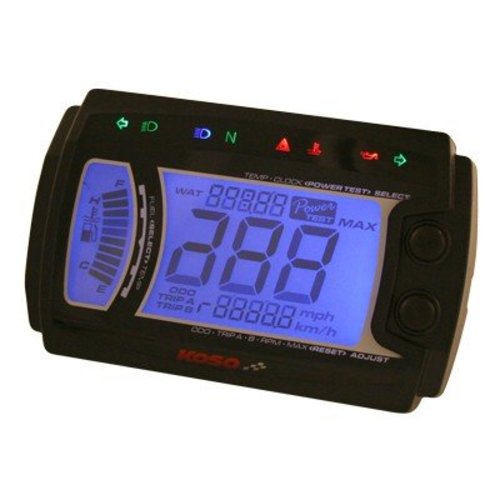

KOSO XR-SRN. KOSO digital multifunction cockpit, XR-SR ABE, with indicator lights, blue backlight, speed, tachometer, odometer, trip odometer, oil and water temperature, fuel gauge (adjustable 100/510 ohms). For the following functions, a maximum value can be set with warning indicator: Speed, rpm, water temperature, ÌÐltempemperatur, tank warning. Supplied with universal sensor and mounting kit and detailed English manual.
Function, setting instruction | Speedometer | Display range: 0~360 km/h (0~223 MPH) | | | Display unit: km/h & MPH for alternative | | Display internal | <0.5 second | | Odometer | 0~99999.9 km, reset automatically after 99999.9 km (mile) | | TTrip meter A.B | 0~999.9 km, reset automatically after 999.9 km (mile) | | Top speed record | Display range: 0~360 km/h (0~223 MPH) | | Tire circumference | Setting range: 300~2,500 mm | | | Setting unit: 1 mm Sensor point: 1~6 | | Tachometer | Display range: 0~18,000 RPM | | | Display unit: 100 RPM | | Display internal | <0.5 second | | MAX RPM record | Display range: 0~18,000 RPM | | Stroke / piston setting | Display range•__0.5, 1, 2, 3, 4, 5, 6 | | Temperature | Display unit: & for alternative | | Digital water Êtemperature | Display unit: 0.1 (0.1) | | Temperature level gauge | Display range: 20~120 (68~248), 10 level | | | Display unit: 1 level=10 (50 ) | | Display internal | <0.5 second | | Top temperature record | Display range: 0~120 (32~248 ) | | Fuel indicator | Display range: 10 levels | | | Display unit: Each level represents 10 % | | | Setting range: 100•__510 | | Clock | 24 H | | Top speed timer | The record including | | | Speed•__0~360 km/h (0~223 MPH) | | | Distance•__0~999 m (0~3280 feet) | | | Timer•__0~9'59"99 second | | Effective voltage | DC 12V | | Effective temperature range | -10~+60oC | | Meter standard | JIS D 0203 D3 | | Meter size | 116.3 X 72.4 X 32.3 mm | | Meter weight | Around 286 g | | Telltales | Neutral (Green)•__High beam (Blue)•__Low beam (Green)•__Winker (Green) | | | Hazard (Red)•__Oil pressure (Red)•__Water temperature light (Red) |
|
