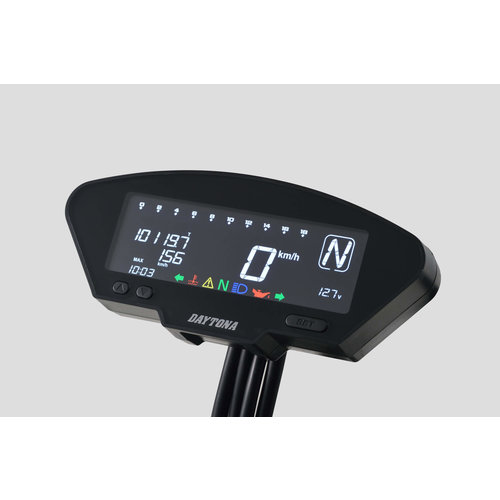

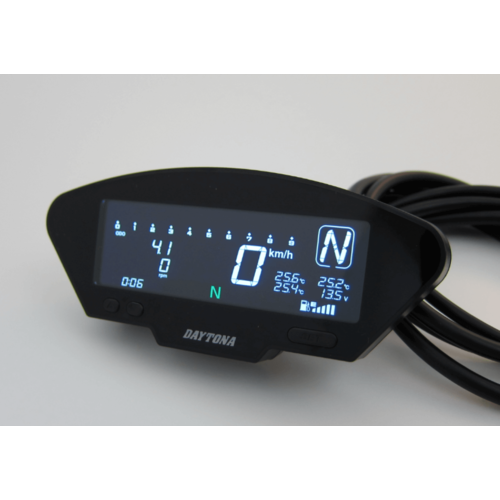

Daytona Multifunctional Speedo/Tacho Dashboard ABS Matte Black

Looking for a compact instrument cluster that combines speed and engine speed readouts without cluttering your cockpit? This Daytona multifunctional gauge merges a speedometer and tachometer (rev counter) into a single ECE-certified unit with a matte black ABS body. An LCD panel handles secondary functions while a stepping motor-driven needle gives a quick, accurate, analogue-style readout of actual speed or RPM. It suits riders who want a modern, all-in-one dashboard with memory functions, a shift-up warning and flexible sensor connections, in a housing that is also IP67 rated against water and dust.

Key Features

• ECE-certified matte black ABS housing
• IP67 waterproof construction
• Combined speedometer and tachometer in one gauge
• LCD display with multiple selectable functions
• Stepping motor-driven analogue pointer
• Switchable km/h or mph readout
• Non-resettable odometer
• Resettable dual trip meter
• Maximum speed memory and recall
• Maximum RPM memory and recall
• Adjustable shift-up warning
• Compatible with OEM electronic speed sensors
• Selectable PPR (pulse per revolution) settings
• Clock, gear position indicator and fuel warning mode
• Ambient air, water and engine oil temperature display with programmable overheat warning
• Turn signal, neutral, high beam and general warning indicator lights

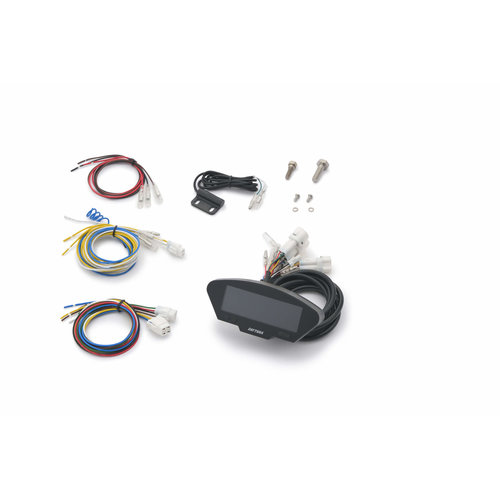

• Included magnetic reed speed sensor
• Included V-shaped stainless mounting bracket

Specifications

• Power supply: DC 9-16V (standard 12V system)
• Speedometer range: 0-399 km/h or 0-299 mph
• Tachometer range: 0-20,000 RPM (switchable to 0-10,000 RPM)
• Voltmeter range: 0.0-18.0V
• Odometer range: 0.0-99,999.9 km (or miles), not resettable
• Dual trip meter range: 0.0-99,999.9 km (or miles), resettable
• PPR settings: 1P-1r / 1P-2r / 2P-1r / 30P-1r
• Overheat warning: programmable between 0 and 180 °C
• Housing: matte black ABS, IP67 waterproof rated
• Dimensions: approx. 132 x 58 x 30.5 mm
• Rear mounting holes: 2x M5, 45 mm pitch
• Bracket mount hole pitch: adjustable 63-112 mm (slotted holes)

Usage & Care Tips

• Use the included magnetic reed sensor on bikes without an electronic speed pulse signal, mounting it at the wheel or sprocket
• Connect directly to an existing OEM electronic speed sensor if the motorcycle is already equipped with one
• Select the PPR setting that matches your chosen sensor and wheel/sprocket configuration for an accurate speed reading
• Use the slotted holes on the stainless V-shaped bracket to adjust the mounting hole pitch between 63 mm and 112 mm
• Optional engine oil temperature sensor and ambient air temperature sensor are available separately for extended monitoring
• Consult the instruction manual before wiring and configuring the dashboard
