Pressol | Barrel Pump SRL 18 l/min G 2" Threaded

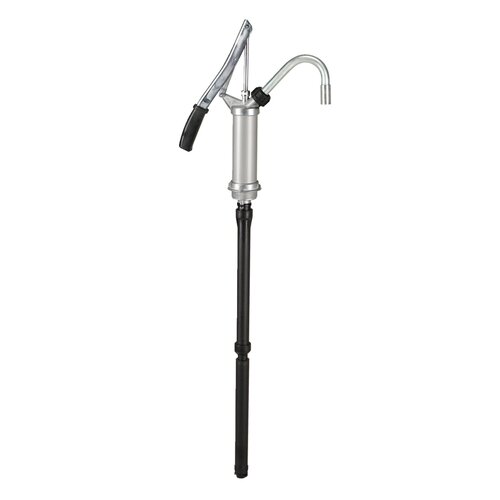

This Pressol barrel pump, also known as a drum pump, delivers 18 liters per minute at 60 strokes, pumping 0.3 liters with every stroke. It connects to 60, 200 and 220 liter barrels through a G 2" male threaded barrel screw coupling and discharges liquid through a spout secured with a cap nut. The pump is suitable for engine oil from SAE 5W to SAE 50, gear oil from SAE 75W to SAE 90, fuel oil, diesel, machine oil, cutting oil, petroleum and undiluted anti-freeze.

Key Features

• Telescopic suction tube adjustable from 355 to 955 mm
• Two-part immersion depth of 355-625 mm
• Three-part immersion depth of 685-955 mm
• Ergonomic non-slip handle
• Integrated check valve against backflow
• Suction tube accepts a tool-free stainless steel suction strainer
• Easy dismantling for cleaning
• Single carton packaging with EAN barcode

Specifications

• Delivery rate: 0.3 l/stroke
• Delivery rate at 60 strokes/min: 18 l/min
• Barrel screw coupling: G 2" male
• Suction tube length (closed): 355 mm
• Immersion depth (two-part): 355-625 mm
• Immersion depth (three-part): 685-955 mm
• Pump head material: impact-resistant zinc die casting
• Pump body material: aluminium
• Suction pipe material: HDPE
• Discharge nozzle material: PP
• Seal materials: PVC, NBR, FKM
• Weight: 1.45 kg
• Compatible container sizes: 60 / 200 / 220 l
• Suitable media: engine oil SAE 5W-50, gear oil SAE 75W-90, fuel oil, diesel, machine oil, cutting oil, petroleum, undiluted anti-freeze

Usage & Care Tips

• A stainless steel suction strainer can be fitted into the suction tube without tools
• The pump can be dismantled easily for cleaning
• The discharge spout is secured with a cap nut
