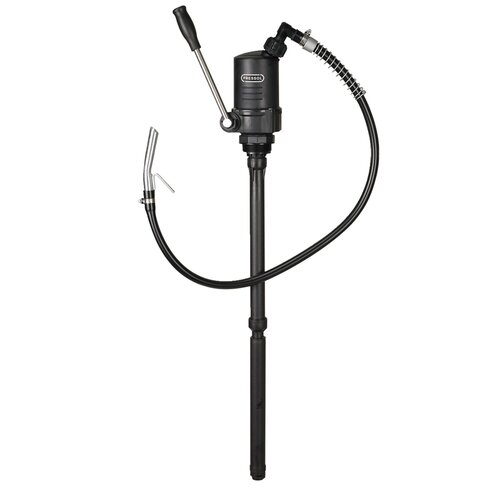

Pressol | Barrel Pump G 2" Threaded 24 l/min

This Pressol barrel pump, also referred to as a drum pump, is built for transferring liquids out of 60, 200 and 220 liter containers fitted with a G 2'' or M 64x4 male thread. Each stroke moves 0.4 liters, giving a pumping capacity of 24 liters per minute at 60 strokes per minute. It is suitable for oils up to SAE 50, diesel, petroleum, kerosene, glycerin and undiluted antifreeze.

Key Features

• Three-part telescopic suction tube, adjustable from 355 to 955 mm
• Barrel screw coupling with G 2'' male and M 64x4 male thread
• Discharge hose of 1500 mm with steel discharge spout
• Hose holder included
• Pump can be freely positioned in 30° increments
• Fully dismountable construction for cleaning
• Constant delivery rate maintained over many years of use
• Spare parts, seals and pistons available for 10 years
• 3 year warranty, excluding wearable parts

Specifications

• Delivery rate: 0.4 l per stroke
• Pumping capacity: 24 l/min at 60 strokes per minute
• Suction tube length: 355-955 mm, three-part telescopic
• Barrel screw coupling: G 2'' male and M 64x4 male
• Discharge hose: 1500 mm with steel discharge spout
• Pump body material: ABS + PA6
• Seals material: FKM
• Metal parts: galvanized steel, stainless steel and powder-coated steel
• Suitable for containers: 60, 200 and 220 l
• Pumping media: oils up to SAE 50, diesel, petroleum, kerosene, glycerin and undiluted antifreeze
• Weight: 1.24 kg

Usage & Care Tips

• Adjust the telescopic suction tube length to match the depth of the container in use
• Rotate the pump housing in 30° steps to position the discharge spout as needed
• Fully disassemble the pump periodically for thorough cleaning
• Replacement seals and pistons remain available for up to 10 years
• An optional suction strainer is available for the telescopic suction tube
• Optional barrel adapters are available for S56x4, S69.5x5.5, M64x4 and S64x5 container threads
