How to Solve Wiring on a Cafe Racer?

This post will included many visual support, while this will help you the most. The sources used for this post can be found at the end. We hope this will help to solve wiring on a Cafe Racer (and other bikes). These 2 following wiring diagrams are for Cafe Racer with or without a Battery.

These are both made by Evan Fell and we are very grateful for that!

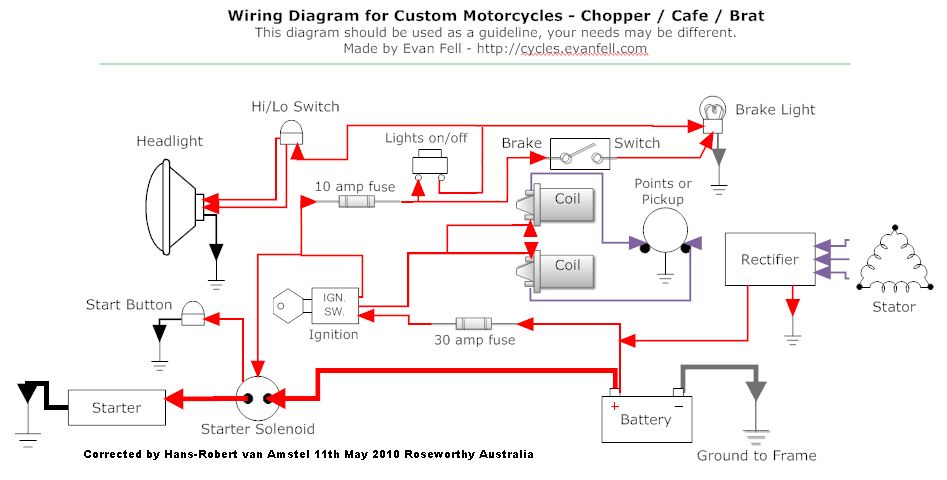

Custom wiring Cafe Racer

  wiring a cafe racer witout a battery

This last wiring diagram is made by speedshop on and is an universal one! Wiring on a cafe racer void

We just received another Wiring Diagram of a Honda CB750 (kicker only ) by Jeroen van Loon.

Kabelboom Custom CB750F1
