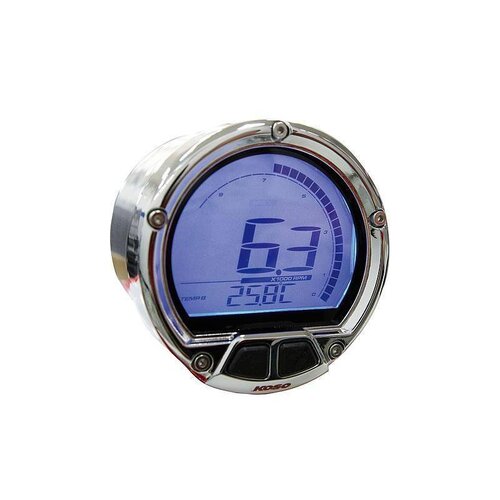

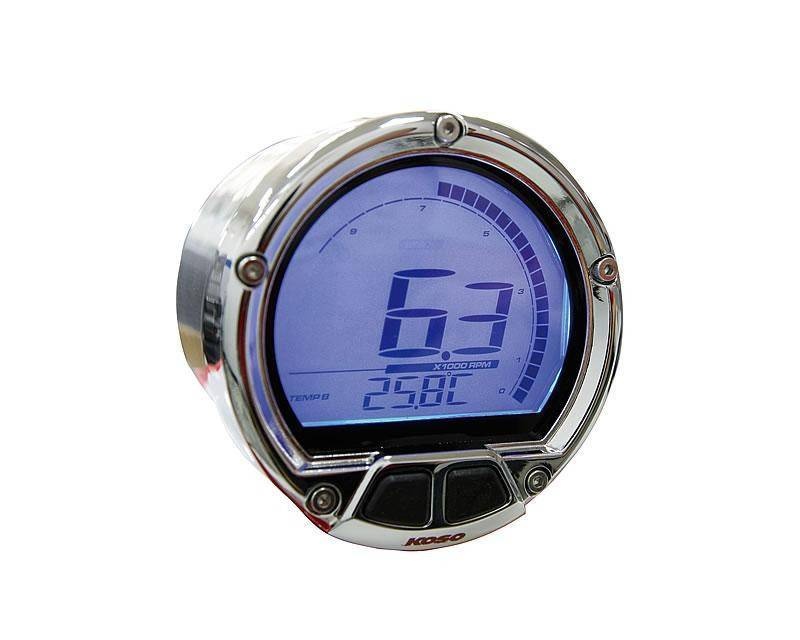

(max 20,000 RPM) D55 DL-02R Tachometer/Thermometer LCD Display
This meter shows the RPM up to 20.000 and the thermometer. The meter works well in combination with the D55 Speedometer.
| Tachometer | Display range: 0-20000 RPM Display unit: 100 RPM Graphic: counterclockwise |
| Frequency | < 0.5 seconds |
| Tachometer level | Display range 0-10000 / 15000/20000 RPM Alternative: Display range: 0 - 10000 RPM 30 graphic segments Display unit: 333 RPM for each segment Display range: 0 - 15000 RPM 60 graphic segments Display unit: 500 RPM for each segment Display range: 0 - 20000 RPM 60 graphic segments Display unit: 666 RPM for each segment |
| Cylinder adjustment | 2-stroke: 1, 2, 3, 4 pistons 4-Stroke: 1, 2. 3. 4, 5, 6, 8, 10, 12, piston |
| Thermometer | Display range: 0 - 250°C (32 - 482°F) Display unit: 0.1°C (°F) |
| Clock | 24 hours |
| Operating voltage | DC 12V |
| Effective temperature | -10 - + 60°C |
| Standard meter | JIS D 0203 S2 |
| Dimensions | D55 x 48.4mm |
