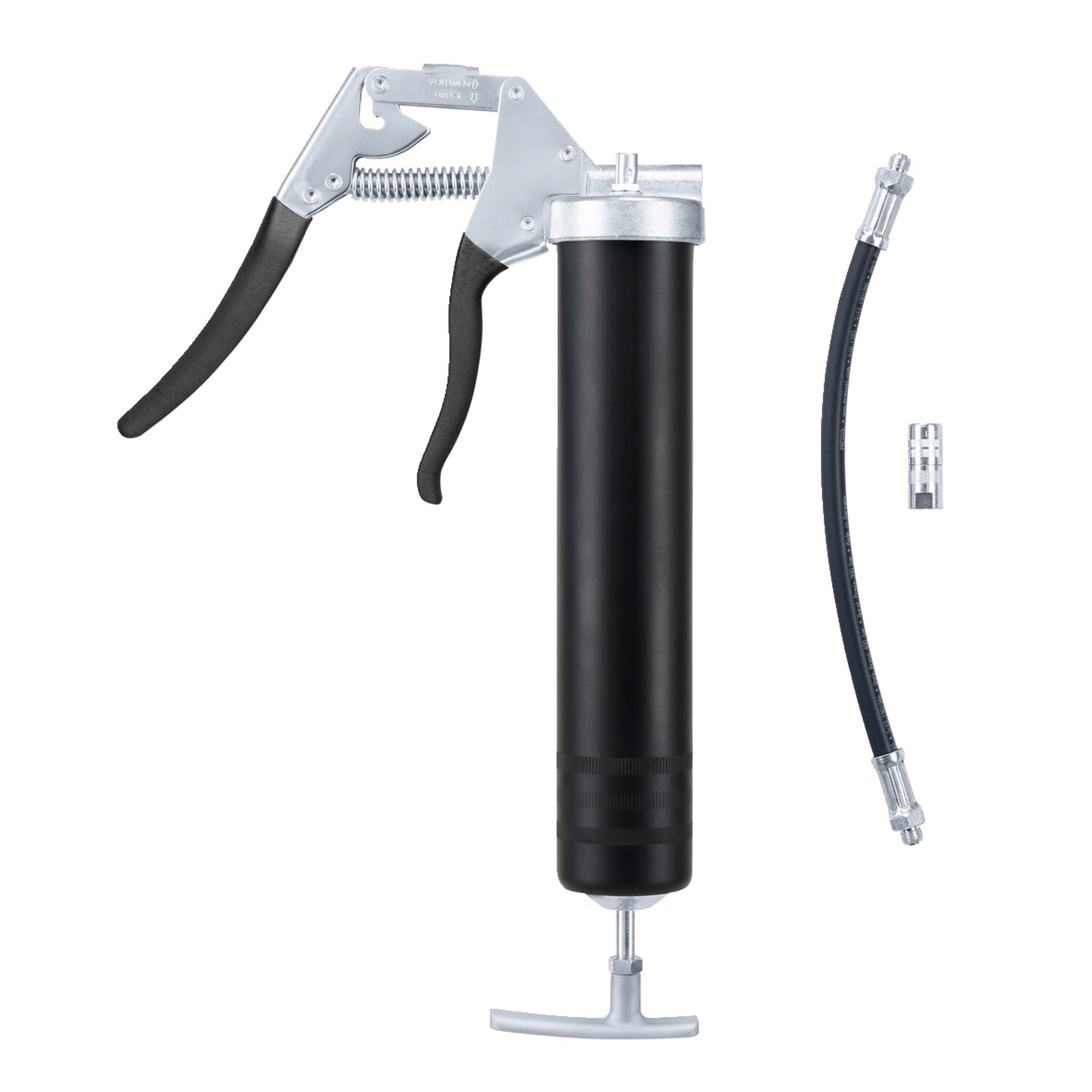

Pressol | One-Hand Grease Gun Black M10x1 200/300 Bar

This one-hand grease gun, also referred to as a pistol-grip lubrication gun, is designed to let you grease fittings single-handed in restricted areas. It takes 400 g grease cartridges (DIN 1284), bulk grease, or can be refilled via a grease gun filling system, and has a 500 cm³ capacity. A hand grip switch lets you change between a high-volume mode at up to 200 bar and a high-pressure mode at up to 300 bar for situations that need more leverage at reduced volume.

Key Features

• Single-hand pistol grip operation for restricted spaces
• Switchable delivery between high volume (200 bar) and high pressure (300 bar)
• Dismantleable, movable push rod system
• Push rod lockable in any position
• Flexible push rod accepts damaged or non-standard cartridges
• T-grip, ergonomic, non-slip handle
• Rolled thread grease gun tube, impact resistant
• Quick screw-in by 1.5 turns
• High-speed ventilation by half a rotation of the tube
• TÜV SÜD-certified, GS mark for Tested Safety
• Galvanized grip, lever, pulling strap, safety catch, cap and push rod
• Zinc die-cast grease gun head (Z410)
• Includes hose bracket
• Easy to dismantle for cleaning
• Supplied in single carton box

Specifications

• Grease gun connection (pressure side): M10x1
• Filling nipple: M10x1 male
• Capacity: 500 cm³
• Refill options: 400 g grease cartridge (DIN 1284), grease gun filling system, or bulk grease
• Grease piston diameter: 9 mm
• Delivery rate per stroke: 1.1 cm³ at 200 bar (volume mode) / 0.7 cm³ at 300 bar (pressure mode)
• Max. delivery pressure: 200 bar (volume) / 300 bar (pressure)
• High-pressure hose: 400 mm x 11 mm, M10x1 male, with sealing ring
• Coupler: precision-machined 4-claw, M10x1 female
• Grease gun tube colour: black
• Dimensions (L x W x H): 400 x 165 x 66 mm
• Weight: 1.38 kg
• Grease gun head material: zinc die casting Z410

Usage & Care Tips

• The push rod can be locked in any position, so it does not need to be fully retracted to release the spring pressure on the grease
• The flexible push rod allows the plunger to be inserted into damaged or non-standard cartridges, and damaged cartridges can be removed easily
• The construction allows the gun to be dismantled for cleaning
• The rolled thread on the tube allows quick screwing-in by 1.5 turns
• The tube can be vented quickly by rotating it half a turn

Fitment

• Universal fitment
