€255,95
While supplies last!
Description

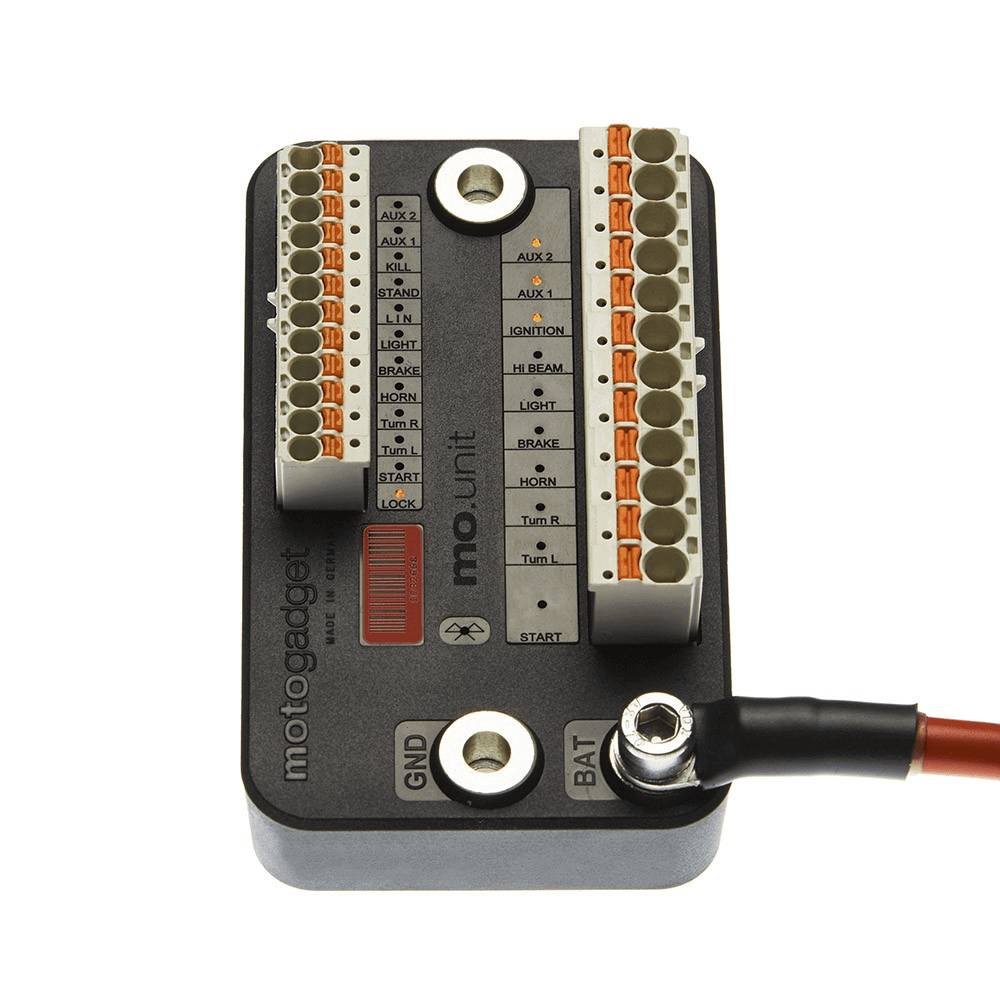

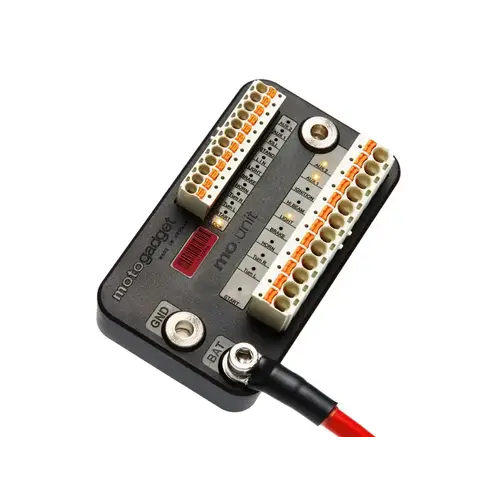

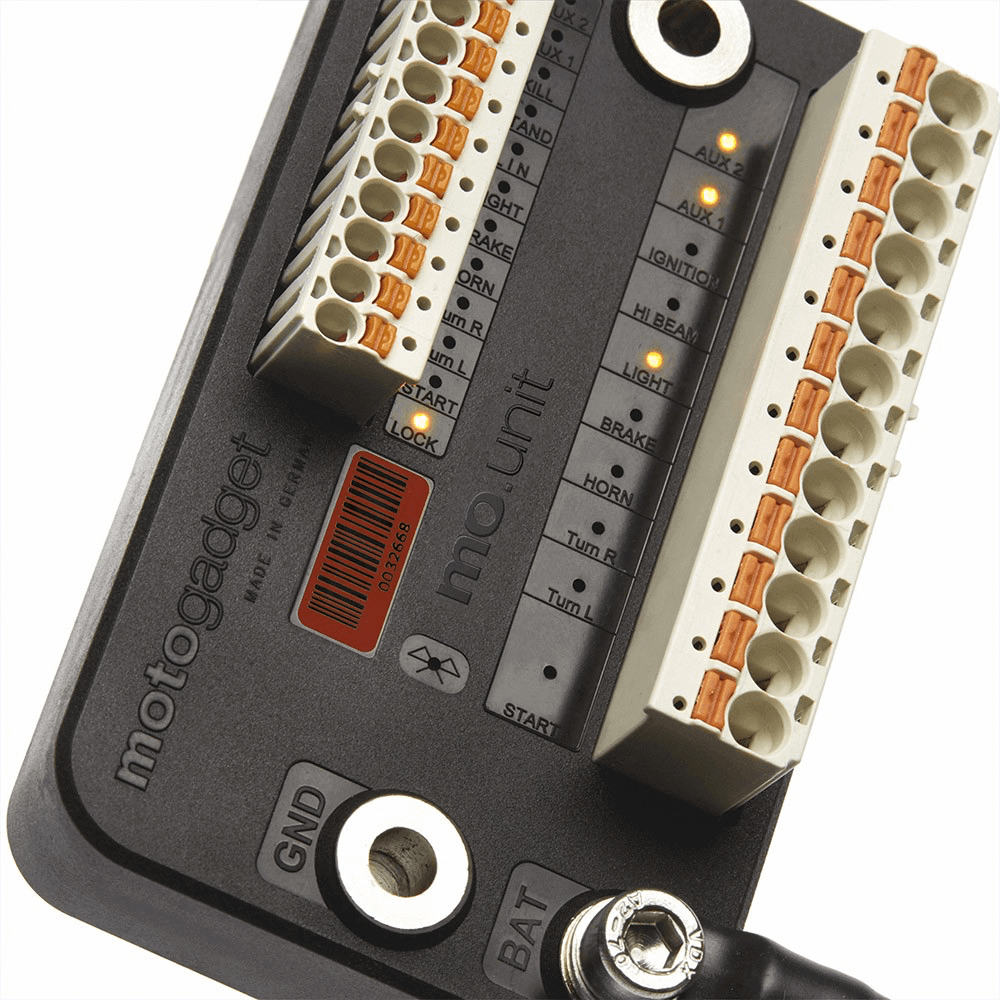

The new mo.unit basic without Bluetooth® LE has moved on from the established mo.unit v.2 by undergoing significant development and improvements. It is now equipped with 12 inputs, 10 outputs and replaceable high-quality cable clamps. It offers the same features like the mo.unit blue but without Bluetooth® LE und connectivity to the mo.ride app.

The mo.unit basic is the digital control unit for your motorbike – the heart of the entire on-board electrical system. It can be operated using buttons or using conventional handlebar switches. It controls all necessary components on the vehicle while also performing fuse functions.

There are considerably fewer relays and individual components in the wiring harness and the vehicle can be rewired with less effort in a very short amount of time.

When using the mo.button, all switch connections are reduced to one single cable.

Features

  • Complete digital control using buttons possible with 4 or 5-button operation. Also latching switches possible
  • Complete replacement for the fuse box. 10 independent circuits are digitally monitored and switched off if there are faults. After the fault is rectified, the safety function is automatically reset.
  • Integrated alarm system that can be installed in any position.
  • Integrated, digital flasher relay that is load-independent; automatic switch-off optional and can be set; mo.wave mode can be selected.
  • Integrated hazard warning light.
  • Turn signal can optionally be set as a positioning light.
  • Integrated parking light and headlight flashing.
  • Lo-beam and Hi-beam (up to 200 W switched capacity) can be controlled using only one button.
  • Integrated, digital brake light modulator; flashing mode can be programmed.
  • Acceleration-controlled emergency brake light (automatic warning signal).
  • Integrated starter relay for the starter system with solenoid (up to 30 A switched capacity).
  • Intelligent and configurable management/switch-off of power consuming devices so that the maximum starting energy from the battery can be used when starting the motorbike.
  • Integrated, digital horn relay.
  • Two configurable additional outputs AUX1 and AUX2.
  • Diagnostics function for assigning inputs, outputs, the circuit switching status, short circuit diagnostics etc.
  • Calibration and current measurement enables faults to be detected on all lamps.

Scope of delivery

  • mo.unit basic
  • 1 x M5 stainless steel bolt
  • 2 x M5 stainless steel bolts with nut
  • Detailed installation and operating instructions
L/W/H90 x 53 x 30 mm, bolt distance 74 mm
WeightApprox. 180 g
Fastener2 x M5 stainless steel bolts (installation and ground connection), 1 x M5 screwing contact for battery Plus
Operating voltage6 V - 20 V
Operating temperature-20°... +80°C
Inputs1 x input (+12 V switched) for ignition lock or mo.lock

11 x control input (minus/switched to ground) for:
Left turn signal
Right turn signal
Lo/Hi-beam
Starter
Horn
Brakelight
Kill switch
Stand switch
LIN bus
AUX1
AUX2
Outputs10 x Outputs (+12V) for:
Left turn signal
Right turn signal
Lo-beam
Hi-beam
Starter
Horn
Brakelight
Ignition
AUX1
AUX2
